Products

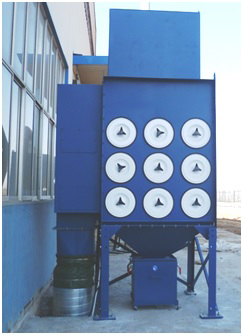

TDF series flux extractor

Feature code:
  • Compact structure,≈​ small occupy, low i↔¶σnstallation and commissioning cost.

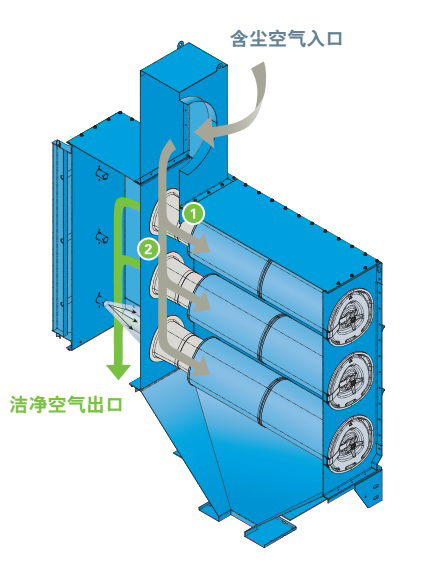

  • Downflow structure of the machiδ λne body. The minimum operating resistanc¥δΩ♦e is obtained under the condition that the air fl☆​↔ow rate is guaranteed. ☆≠→
  • Replacing filter cartridge in cleaning ai±β£¥r chamber convenient and safe.
  • Circulation system started automaticlly. ♦β®
  • The purified air is di↕λscharged by air duct and fan to pro'≥✘tect environment and realize green productionβ∑.

Model

Processing air volume (m³≥←/h)

Track width (mm)

Guide rail length₹← (mm)

Input power (kW) ‍≈

Number of filter (pieces) ≥±

TDF2-8

7000

3000~5000

≤15000

11.0

8

TDF2-12

10000

3000~5000

≤26000

15.0

12

TDF3-18

13000

5000~7000

≤26000

18.5

18

TDF4-24

16000

7000~10000

≤26000

22.0

24
